FeelWorld 17.3” 4K Carry-On Broadcast Monitor

FeelWorld 17.3” 4K Carry-On Broadcast Monitor

Key Features:

• 1920 x 1080 Display, Up to 4K30 Input
• Protective Case for Efficient On-Set Use
• Removable from Case, Rack-Mountable
• 178° H/178° V Viewing Angle
• HDMI, 3G-SDI & Analog Inputs/Outputs
• RCA Audio Input, Headphone Out, Speakers
• Tally Port, 3-Color LED Tally Indicators
• Integrated V-Mount Battery Plate
• Peaking & Other Imaging Functions
• 4-Pin XLR & DC Barrel Power Ports

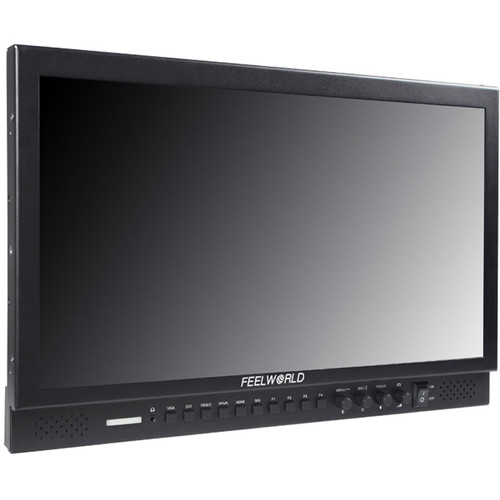

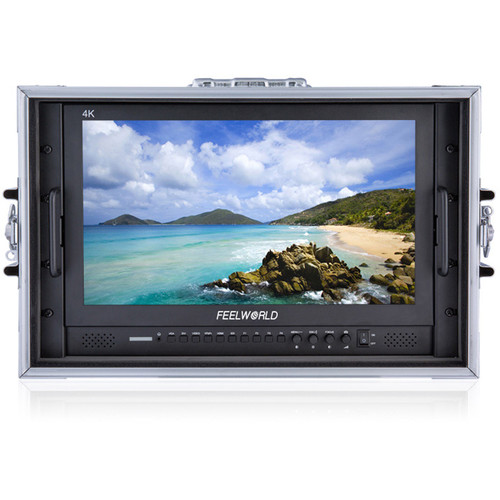

The 17.3″ 4K Carry-On Broadcast Monitor from FeelWorld features a 1920 x 1080 display and support for up to UHD 4K30 signals. It comes fastened within a metal case designed to allow for efficient use while ensuring optimal heat dissipation and all-around protection on set.

FeelWorld P 9HSD Monitor Overview

The 17.3″ 4K Carry-On Broadcast Monitor from FeelWorld features a 1920 x 1080 display and support for up to UHD 4K30 signals. It comes fastened within a metal case designed to allow for efficient use while ensuring optimal heat dissipation and all-around protection on set. You can set it on the ground, lean it against something, place it flat on a desktop or similar surface, and carry it using the top handle.

Versatile Interface

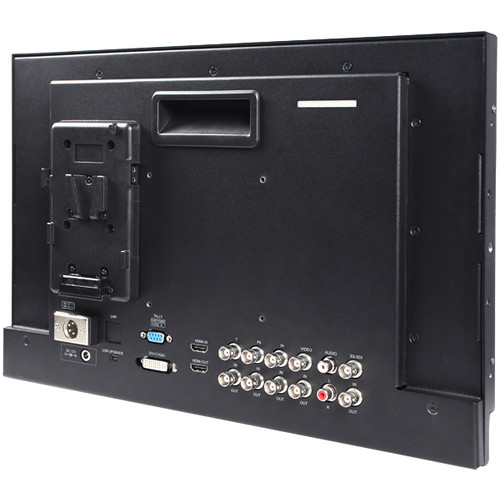

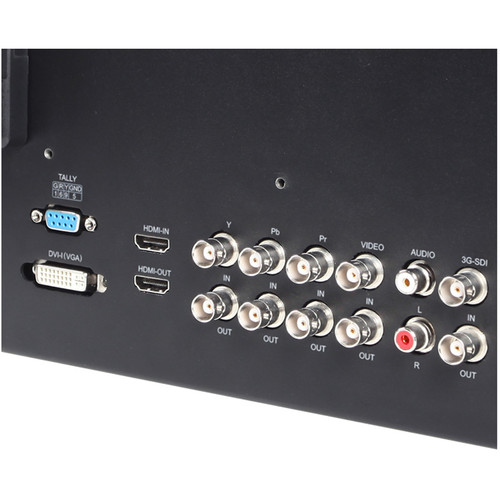

The monitor offers HDMI, 3G-SDI, DVI-I, analog inputs and outputs, RCA audio inputs, and a tally port

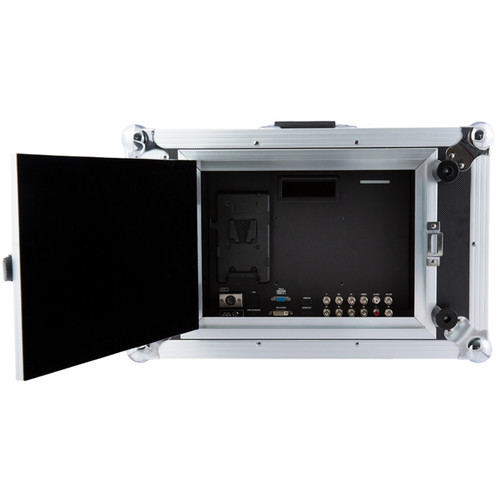

All these connections, plus an integrated V-mount battery plate and 4-pin XLR and barrel power inputs are accessible via a door on the rear of the case

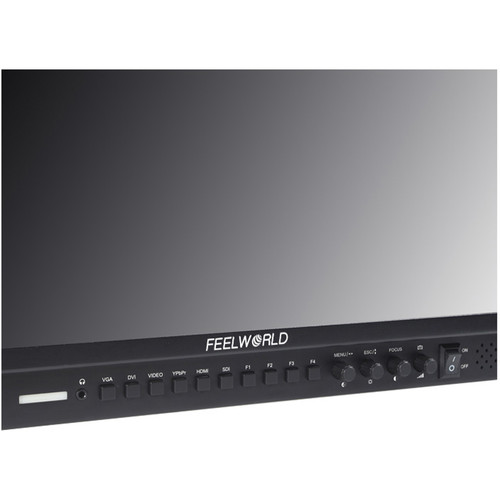

A headphone jack and built-in speakers are available for audio monitoring, and a 3-color LED tally light is provided on the bottom of the front panel

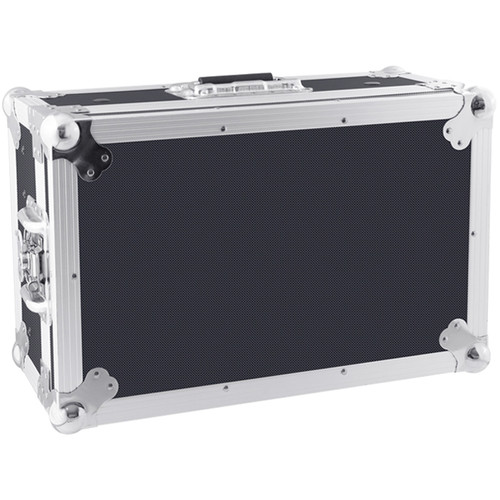

Durable Case

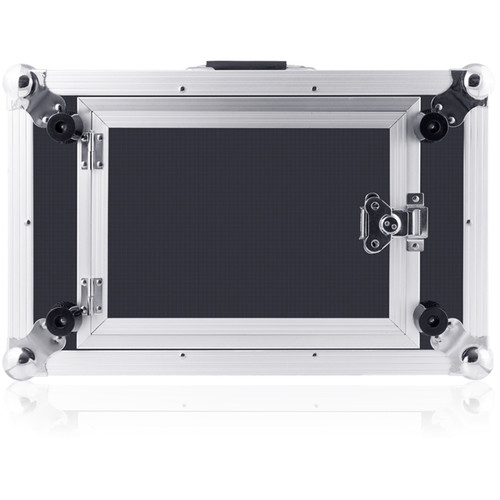

The case lid can be removed completely to provide a full view of the screen
Alternatively, the monitor can be unfastened from the case and installed into a rack using the built-in rack ears
A large collapsible sunshade is included for use outdoors or in bright indoor conditions

Power Options

Power the monitor using the integrated V-mount plate and a separately available battery
Plug in a power source using the 4-pin XLR or DC barrel power port

Image Analysis Functions

• Peaking focus assist
• Check field
• Camera mode
• Pixel-to-pixel
• Center marker
• Safe marker (80, 85, 90, 93, 96, 2.35:1)
• Image flip (horizontal, vertical, and horizontal and vertical)
• Image freeze
• Zoom all
• U/D and L/R zoom
